14Ga Stainless Steel 304 Lacing Anchor Hooks For Thermal Insulation Jackets
14Ga Stainless Steel 304 Lacing Anchor Hooks Product introduce :
- 1. Lacing Anchor is a fabricated metal anchor consisting of a pin and tabbed ,or hooked washer .
- 2. Stainless steel is a popular material while some Lacing Anchors are made in Mild steel .
- 3. 2-1/2" stainless steel lacing anchors are primarily used as the means of fastening lagging
exhaust systems (tie wire as the lacing material).
- 4.Lacing anchors can be used to add additional support to existing lagging, or used with other
raw insulation material.
- 5.Lacing anchors are manufactured in nail point configuration, and are 12 gauge in diameter.
- 6.to lagging it is recommended that 12 gauge self-locking washers- oblong or round- be used.
Features of slim lacing anchor
pins material is annealed steel wire, easy for bending and cutting.
zinc coated/copper plated surface treatment for rustproof
smooth surface ,No burry
base washer material is hardness material, not be deformed
Spefication Of 14Ga Stainless Steel 304 Lacing Anchor Hooks :
| Product name | Insulation Anchor Pins |
| Pin size | Length: 12GA or 14 GA in common ,other to be request |
| Diameter: 1-1/2”,2-1/2”,3-1/2”,4-1/2”,5-1/2”,other to be request |
| Material | Pin: Mild Steel, Stainless steel 304/316/316L |
| Base: Mild Steel, Stainless steel 304/316/316L |
| Surface treatment | Polish for stainless steel |
| Galvanized plating for mild steel |
| Product features | Firm conjunction between bases and pins |
| Pins are soft, easy bending over |
| Sharp points,easy going through any insulation blankets |
| Production workmanship | Automated production |
| Packing | Packing can be customized as per requirements |
| Supply capability | 350000 sets per month |
| Installation accessories | Self-locking washer ,D type ring |
| Application | used in the fabrication of insulation blankets or removable covers/pads |
| Remark | Technical parameters are available upon request |

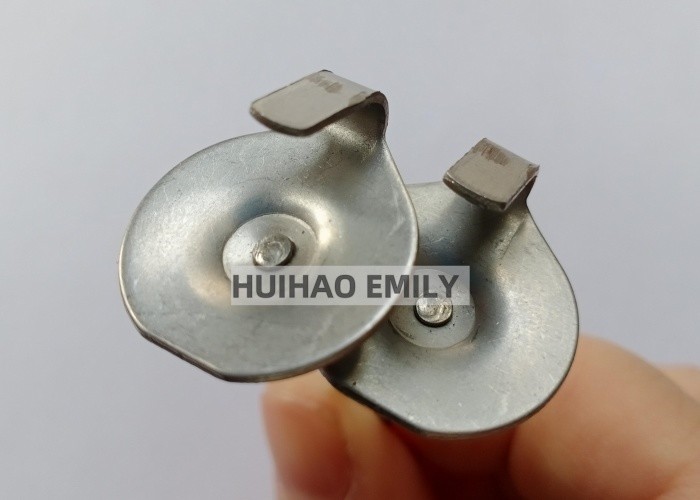

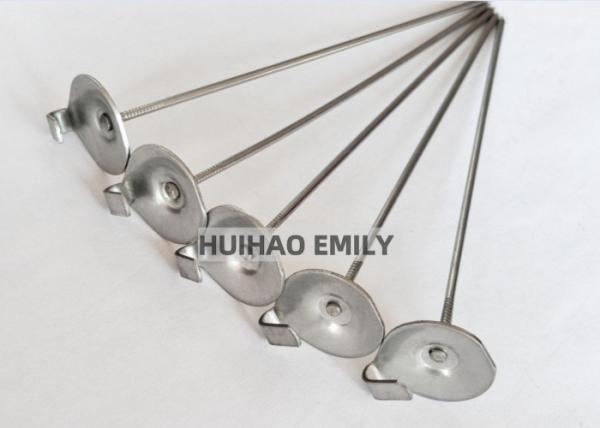

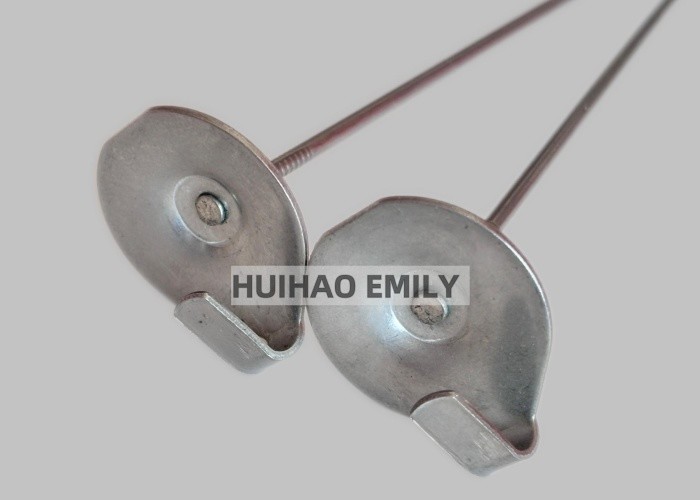

Pic Of 14Ga Stainless Steel 304 Lacing Anchor Hooks :
How to install Metal lacing anchor :
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
How to choose suitable pin length for fixing insulation material ?
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards
Other accessories for insulation removable covers :
 | Lacing anchors Material :stainless steel 304/316/316L Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request Self locking washer :25mm,30mm |

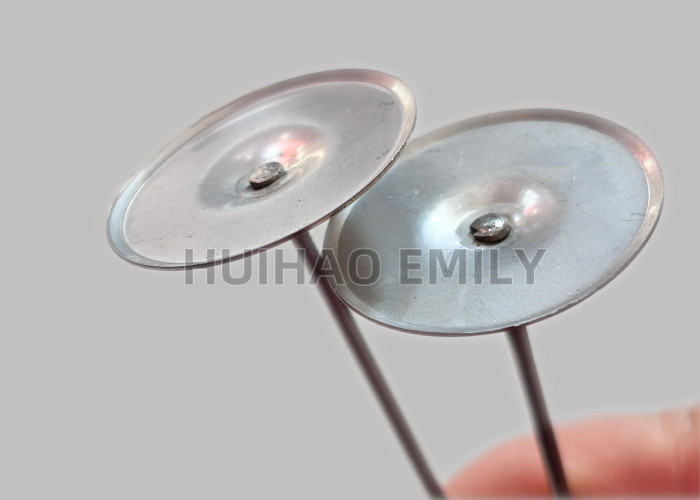

| Quilting pins Material :stainless steel 304/316/316L Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request Self locking washer :25mm,30mm |  |

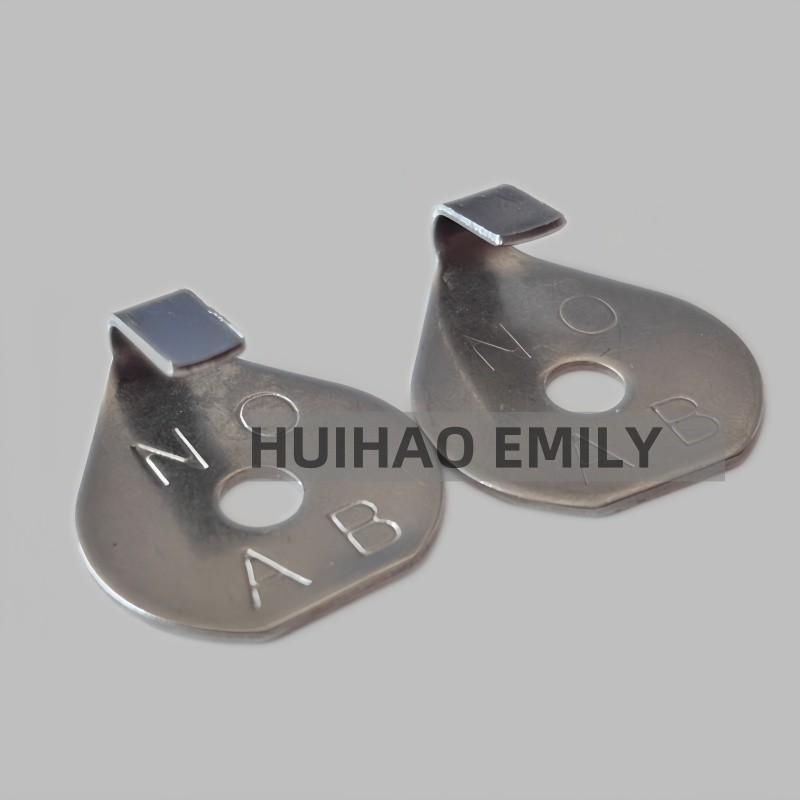

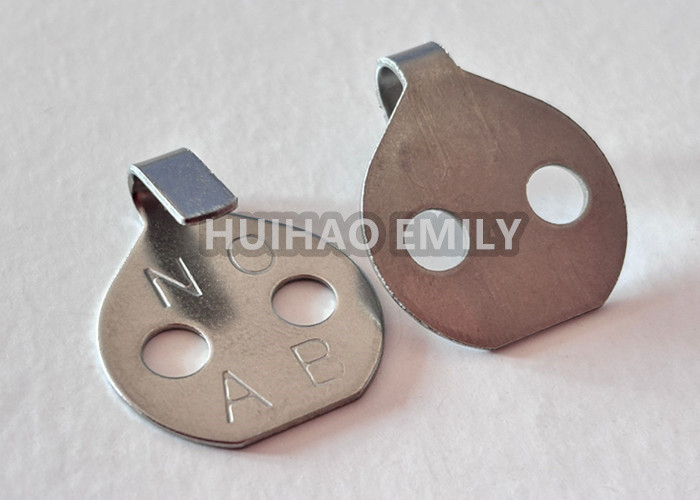

 | 2 holes Lacing hooks Material :stainless steel 304/316/316L Size:22mm Thickness :1mm is in common,other to be request Surface :NO&AB or without |
| Single holes Lacing hooks Material :stainless steel 304/316/316L Size:22mm Thickness :1mm is in common,other to be request Surface :NO&AB or without |  |

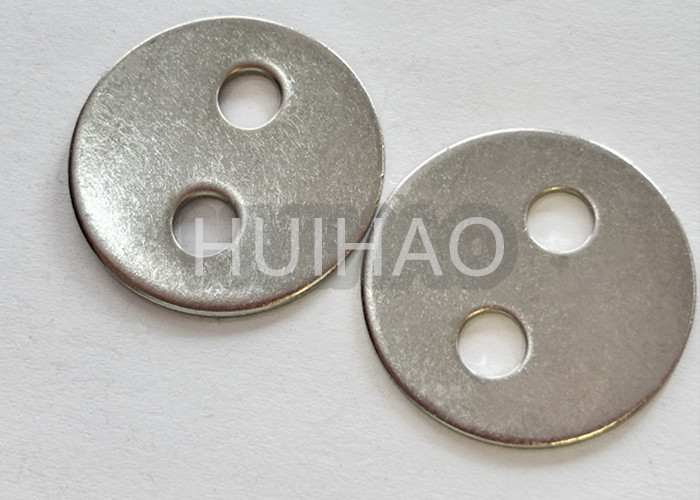

 | Lacing washers Material :stainless steel 304/316/316L Size:25mm Thickness :1mm is in common,other to be request |

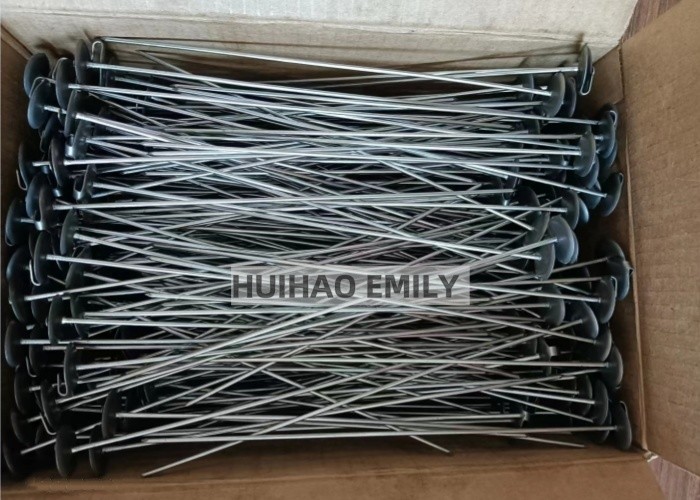

Package Of 14Ga Stainless Steel 304 Lacing Anchor Hooks :
 |
| The package of lacing hooks washers : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency. |
