3 X 75mm Bi-metallic CD Weld Blunt Headed Pins With Aluminum Base

  • 1
  • 2

Brand Name : huihao

Model Number : Bi-metallic pins

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C, T/T, Western Union,paypal

Supply Ability : 50000pcs per day

Delivery Time : 7 work days

Packaging Details : Plastic bags+cartons

Product name : Bi-metallic pins/ blunt headed pins

Material of the shaft : Carbon steel or stainless steel

Pin diameter : 3mm in common

Base material : Aluminum base

Base size : 6 X 15 mm

Total length : 75 mm , or customized length

Surface treatment : Copper coated or polished

Application : Ship building industry

Contact Now

3 X 75mm Bi-metallic CD weld blunt headed pins with aluminum base

Bi-metallic Pins , The studs and raw material specifications mentioned conform with EN ISO 13918 and EN ISO 14555.
The Bi-metallic wedl pins is widely used for ship building industry .ti could connect the different metal material together .
Specificatons of the Bi-metallic blunt headed pins

Material

Pin Diameter

Insulated Head SizeCommon length

Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum

3 mm in common

6mm*15mm50 mm
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum3.0 mm in common 6mm*15mm60 mm
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum3.0 mm in common6mm*15mm65 mm
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum3.0 mm in common6mm*15mm75 mm
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum3.0 mm in common6mm*15mm90 mm
Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum3.0 mm in common6mm*15mm120 ,mm
Note Both the pin diameter and legnth could be customized

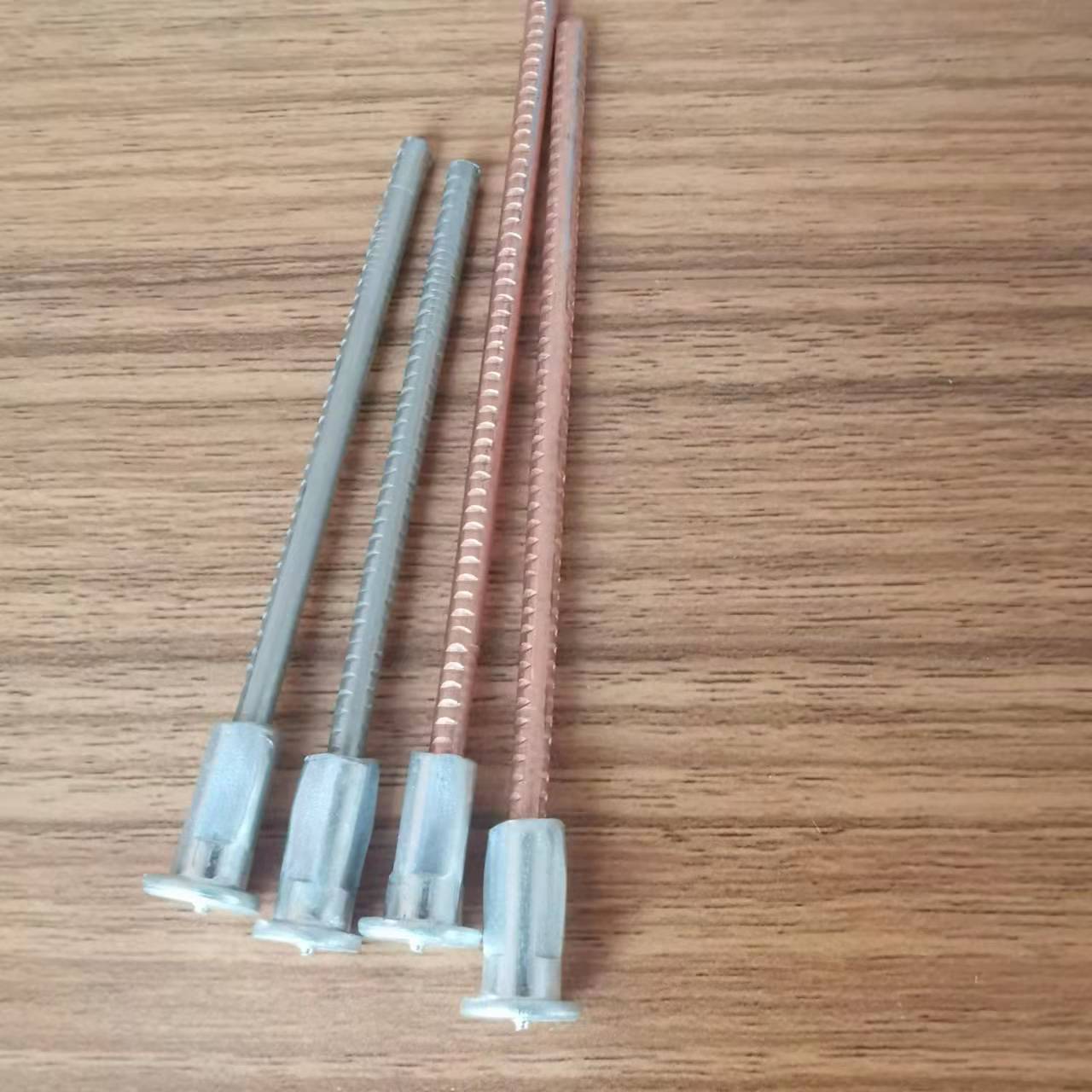

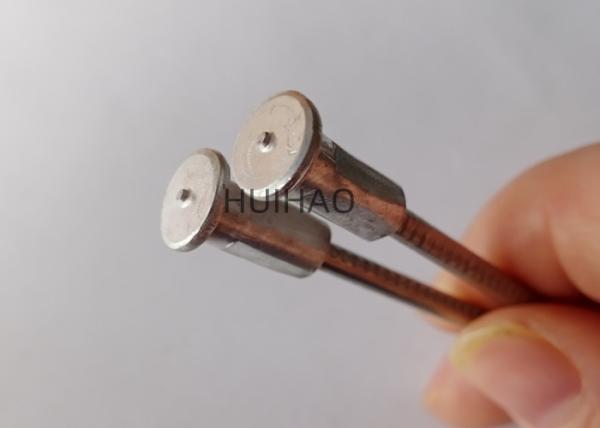

Detail images of the Bi-metallic blunt headed pins
3 X 75mm Bi-metallic CD Weld Blunt Headed Pins With Aluminum Base
3 X 75mm Bi-metallic CD Weld Blunt Headed Pins With Aluminum Base

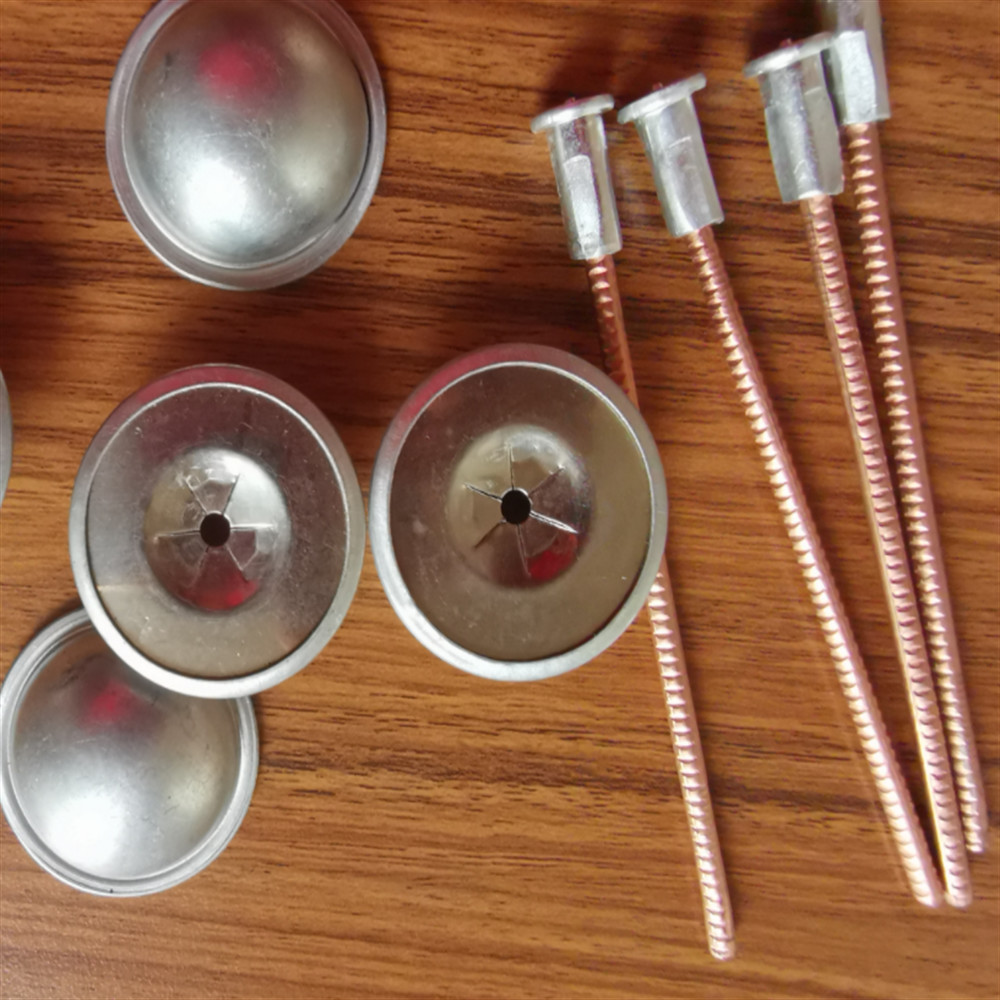

Washers of the Bi-metallic blunt headed pins


Round self locking washers is also named self clips. it is used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in place.
the round washer is with three petals in center by stamped technical. common material is stainless steel 304/316. special material is for coustomzed orders.

Material
Type
Diameter
Pin Diameter
Thickness
Package
SS304/316,Galvanized Steel
Round
38mm
10Ga, 12Ga, 14Ga,3mm
0.4mm
2000pcs/carton
SS304/316,Galvanized SteelSquare32mm 50mm10Ga, 12Ga, 14Ga,3mm0.4mm2000pcs/carton
SS304/316,Galvanized SteelDome cap28mm,32mm10Ga, 12Ga, 14Ga,3mm0.4mm2500pcs /carton
Other size also could be customed.

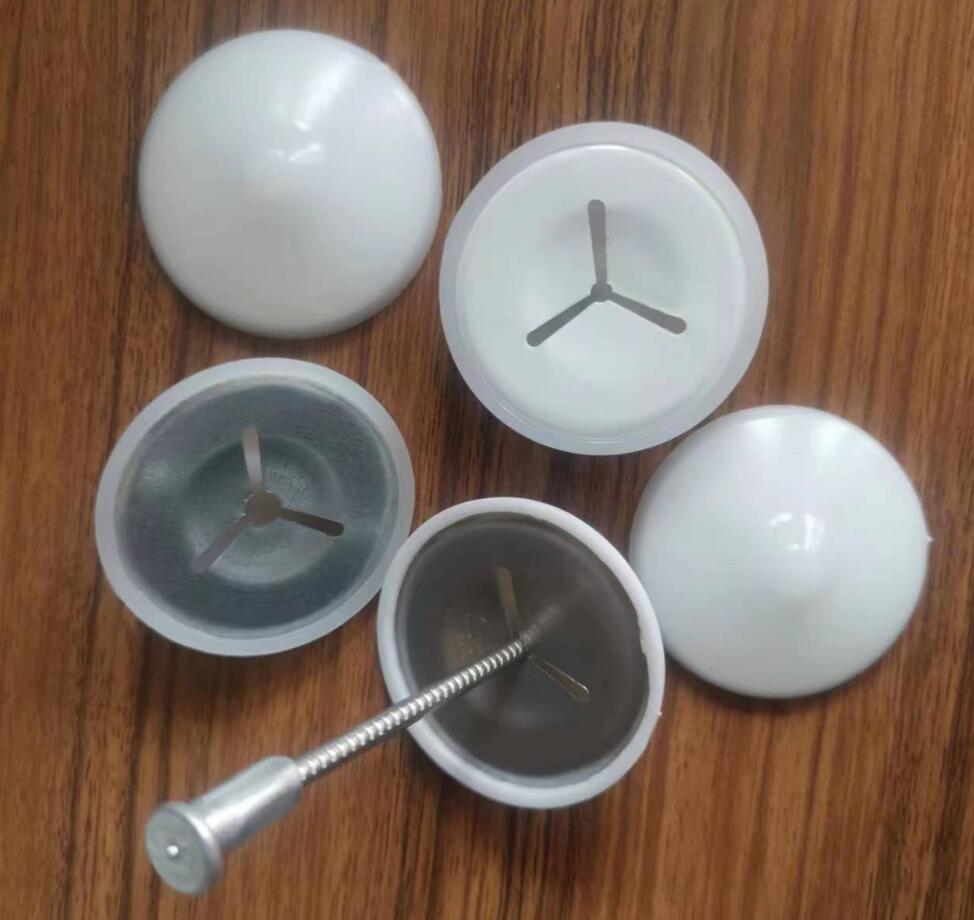

There is also another more safety type washer for the bi-metallic pins: SS clips +plastic cap
3 X 75mm Bi-metallic CD Weld Blunt Headed Pins With Aluminum Base


Packing and delivery methods of Bi-metallic blunt headed pins
Packing:500 or 1000 units per plastic bag and then put the bags into carton , also could be packed as request .
3 X 75mm Bi-metallic CD Weld Blunt Headed Pins With Aluminum Base
Delivery methods:
Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
