2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials

  • 1
  • 2

Brand Name : HUIHAO

Model Number : perforated base insulation hangers

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000 pcs

Payment Terms : L/C, T/T,

Supply Ability : 10000 pcs oer hour

Delivery Time : 10 work days

Packaging Details : 500pcs per carton, 48 cartons per pallet, or as your requirement

Name : Perforated Base Insulation Hangers

Brand : Huihao Custom

Base Material : Galvanized steel or stainless steel

Base Size : 40x40mm, 50x50mm etc.

Pin Material : galvanized steel or stainless steel or aluminum

Base Thickness : 0.4mm, etc.

Product Customization : Support

Pin Diameter : 2.7mm, 3.0mm, 3.4mm etc.

Samples : Support

Pin Length : 1" - 12"

Contact Now

2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials

Specifications Of The Perforated Base Insulation Hangers

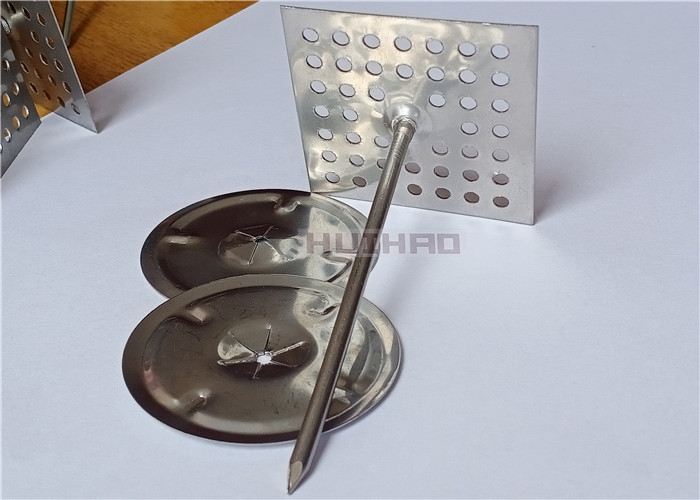

Perforated Base Insulation Hangers is made of a perforated metal base attached to a metal pin.

The 2" x 2" base is fabricated out of metal with the pin attached for impaling and installing

various acoustic insulation materials.

Material available

Pin material

-mild steel: must be annealed treatment, easy

for bend; zinc coated/copper plated finished

for anti-rust

-aluminum 1100 grade

-annealed stainless steel for specification

Base

Galvanized steel, stainless steel

Common size details

Pin diameter

Pin length

Base thickness

Base size

12ga(2.7mm)

1”-12”

0.4mm

50x50mm/40x40mm

3mm

1”-12”

0.4mm

50x50mm/40x40mm

10ga(3.4mm)

1”-12”

0.4mm

50x50mm/40x40mm

　

Imges Of The Perforated Base Insulation Hangers

Features:

* Application specific design

* Corrosion resistance

* Efficiency

* Eco friendly product

* Weather proof

* Long serving life

* Sturdy construction

 2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials

Self Locking Washers For The Perforated Base Insulation Hangers

Self Locking Washers Used To Fasten Perforated Base Insulation Hangers
type size material center hole
round 25mm galvanized steel, stainless steel, aluminum 2mm-5mm
round 30mm galvanized steel, stainless steel, aluminum 2mm-5mm
round 32mm galvanized steel, stainless steel, aluminum 2mm-5mm
round 38mm galvanized steel, stainless steel, aluminum 2mm-5mm
square 32mmx32mm galvanized steel, stainless steel, aluminum 2mm-5mm
square 29mmx31mm galvanized steel, stainless steel, aluminum 2mm-5mm
square 38mmx38mm galvanized steel, stainless steel, aluminum 2mm-5mm
square 50mmx50mm galvanized steel, stainless steel, aluminum 2mm-5mm
square 65mmx65mm galvanized steel, stainless steel, aluminum 2mm-5mm
dome cap 30mm galvanized steel, stainless steel, aluminum 2mm-5mm
dome cap 32mm galvanized steel, stainless steel, aluminum 2mm-5mm
dome cap 38mm galvanized steel, stainless steel, aluminum 2mm-5mm
dome cap 40mm galvanized steel, stainless steel, aluminum 2mm-5mm
dome cap 50mm galvanized steel, stainless steel, aluminum 2mm-5mm
2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials

Application Of The Perforated Base Insulation Hangers

1. Wipe surface clean

2. Glue the base of the perforated insulation hangers

3. Stick perforated insulation hangers in place

4. Pierce the insulation onto the pins

5. Push the washer onto the pin to hold the insulation in place

6. Bend over the remaining part of the pin if necessary
2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials

Package Details Of The Perforated Base Insulation Hangers

PIN LENGTH CARTON SIZE QTY/CARTON
38MM 41CMX28CMX17CM 1000PCS
50MM-65MM 41CMX28CMX17CM 500PCS
70MM-84MM 30CMX28CMX29CM 500PCS
90MM-120MM 30CMX30CMX30CM 500PCS
130MM-160MM 30CMX30CMX35CM 500PCS
170MM-203MM 30CMX30CMX28CM 250PCS
OTHERS SUPPORT CUSTOM
2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material using drawing machine.
3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management.
2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials2-1/2" Perforated Base Insulation Hangers Fixing Acoustic Insulation Materials
