Gateway Mesh Architectural Wire Mesh , Elevator Cabs Fashioned Wire Mesh
technical support of Gateway Mesh Architectural Wire Mesh , Elevator Cabs Fashioned Wire Mesh
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
specification of Gateway Mesh Architectural Wire Mesh , Elevator Cabs Fashioned Wire Mesh

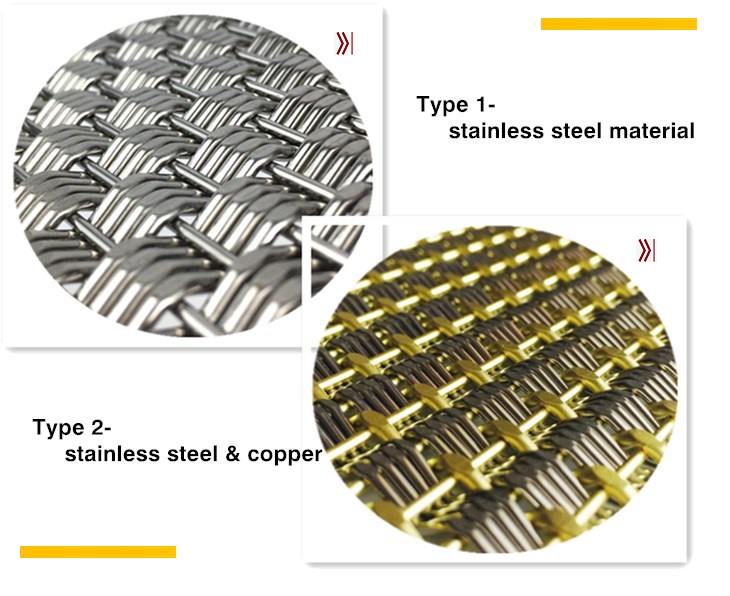

Type-1
| Material | Stainless steel | Opening Area | 0% |
| Warp Diameter | 2.5mm | Mesh Thickness | 6mm |
| Warp Pitch | 7mm | Surface | clean &free oil |
| Weft Diameter | 2mm | Max High | 4000mm |
| Weft Pitch | 8mm | Max Wide | 8000mm |
| Weight | 18.4kgs/m2 | Application | Interior / Exterior |
type-2
| Material | Stainless steel&Copper | Opening Area | 0% |
| Warp Diameter | 1.5mm | Mesh Thickness | 5mm |
| Warp Pitch | 4mm | Surface | free oil |
| Weft Diameter | 1.45mm×4mm ,2mm×1mm | Max High | 8000mm |
| Weft Pitch | 7.8mm | Max Wide | 4000mm |
| Weight | 14.32kgs/m2 | Application | Interior / Exterior |

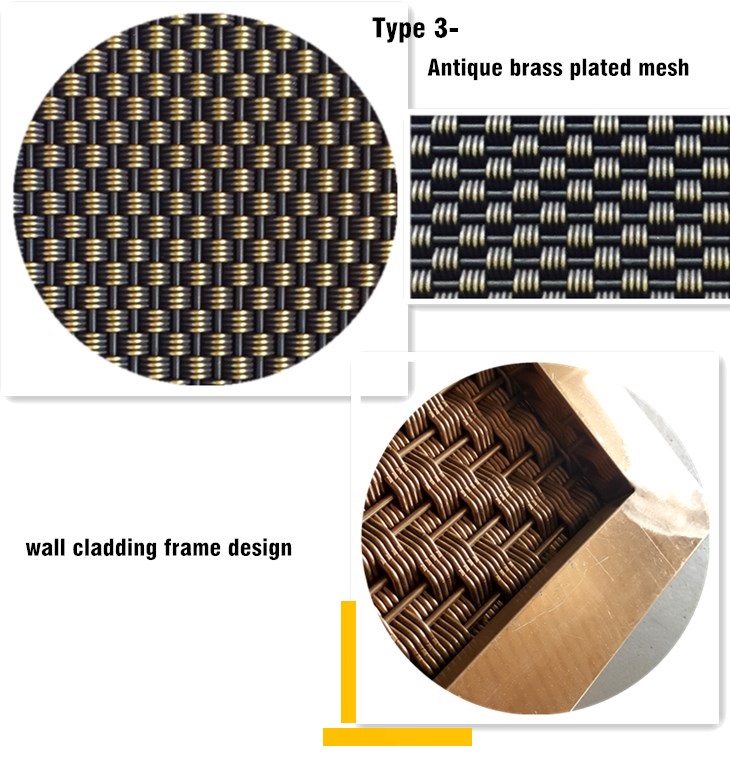

type-3
| Material | Stainless steel | Opening Area | 0% |
| Warp Diameter | 0.8×1.05mm | Mesh Thickness | 3mm |
| Warp Pitch | 8mm | Surface | clean &free oil |
| Weft Diameter | 1×2mm | Max High | 15000mm |
| Weft Pitch | 4mm | Max Wide | 4000mm |
| Weight | 9kgs/m2 | Application | Interior / Exterior |
type-4
| Material | Stainless Steel & Copper | Opening Area | 0% |
| Warp Diameter | 1.6mm | Mesh Thickness | 3.6mm |
| Warp Pitch | 4.5mm | Surface | Free oil |
| Weft Diameter | 1.7x4mm | Max Lengh | 15m |
| Weft Pitch | 4mm | Max Width | 4m |
| Weight | 15.2kgs/m2 | Application | Interior /exterior |
Other styles and specifications also could be customed.

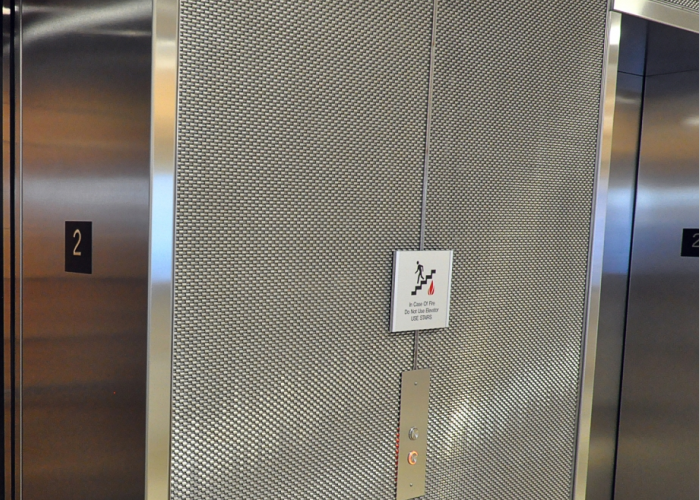

Application Of The Gateway Mesh Architectural Wire Mesh , Elevator Cabs Fashioned Wire Mesh
