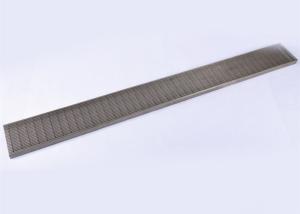

Professional V- Shaped Wedge Wire screen Panel For Long Linear Floor Drain

120 Degree V-shaped Wedge Wire screen Panel For Long Linear Floor Drain

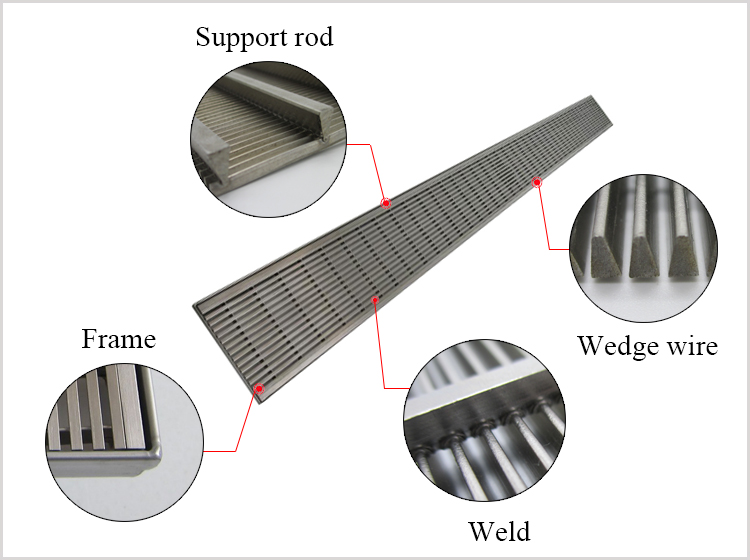

Details of wedge wire _______________________________________________________________

1.The angle

(1)The angle between top bar and low bar is 90 degree

(2)The angle at each corner is 90 degree

(3)The angle inside each corner is 90 degree

2.The top wire.

It's nearly perfect straight after welding.For a 1800mm product,The STRAIGHT tolerance is<0.5mm.(Notthe size tolerance).

It's very hard to achieve for aweldingproduct.The advantage is whatever how long the projectis,it lookslike there is only one

grate.Cause each line connectsanotherexactly.

3.The welding point

Our welding point is very neat and clean.It needs a very high welding skill to make this happen.We do training for each workers

hand by hand to ensure the quality

4. specification of wedge wire screen panel

5. advantage of wedge wire screen panels

• Drainage fast , always keep the bathroom dry and clean, enhance the level of non-slip surface
• Increase three dimensional sense of space ,do not use stone to separate dry and wet areas again ,and don't use any other Stainless Steel Linear Drain
• Save the time of construction, using the drainage of same gradient, construction of simple ,maintain tile integrity and beautiful appearance .
• Security increased ,it is a trouble free access for some people whose action is inconvenience as it do not need the stone to separate dry and wet areas
• Beautiful appearance ,to be part of the bathroom , become a kind of elegant decoration

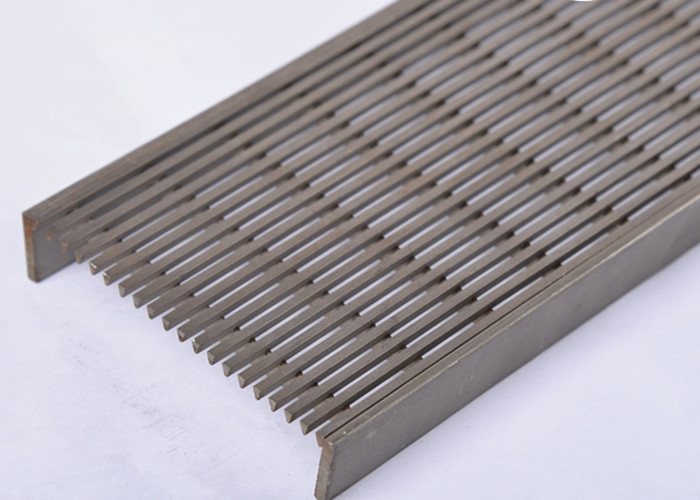

images of wedge wire screen panels

___________________________________________________________________________________

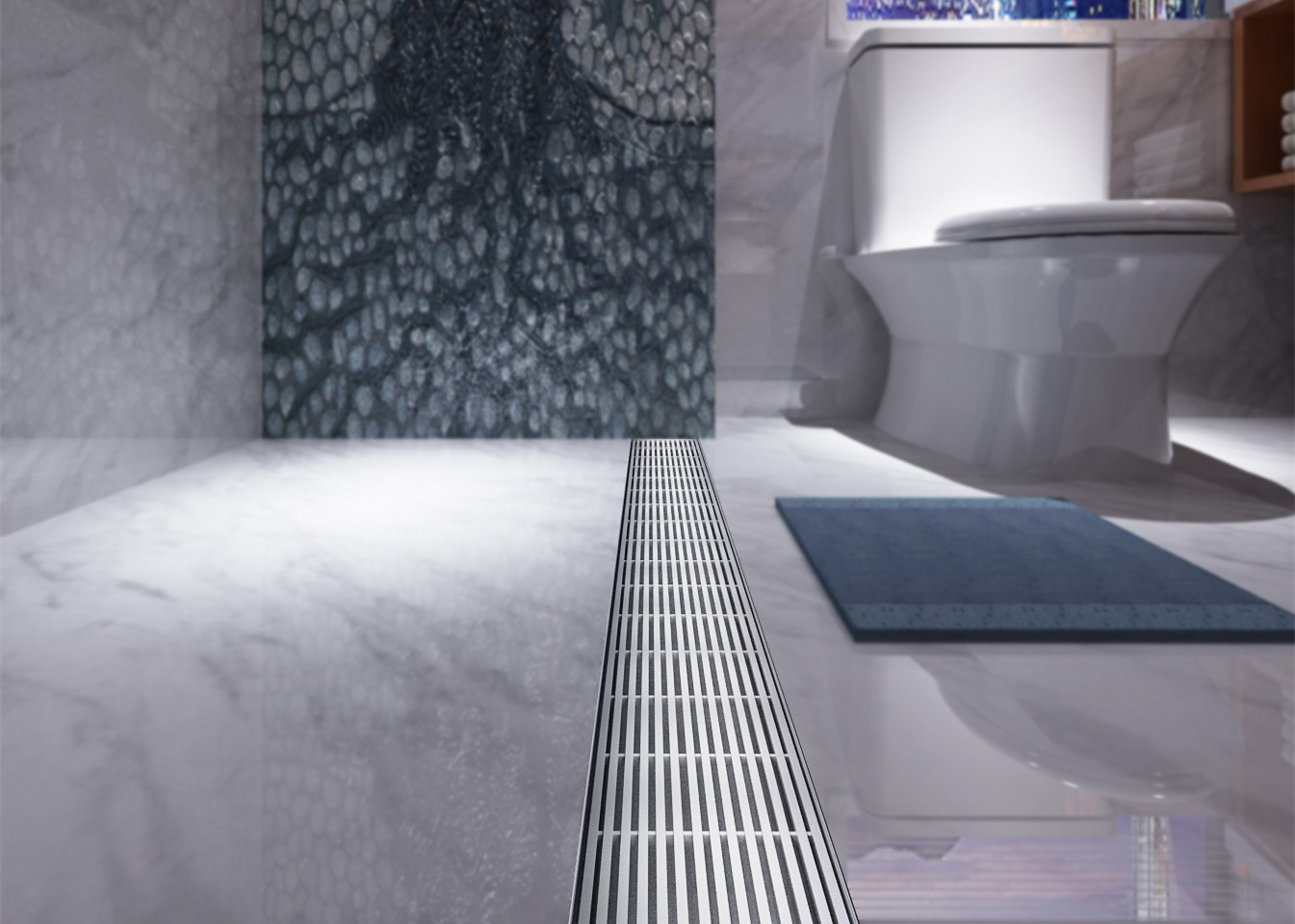

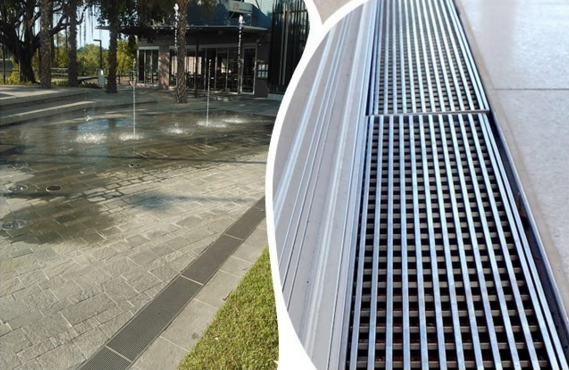

Application of Wedge Wire Screen Panels

———————————————————————————————————————————————

Public walkways · Threshold · Bathroom drainage· Driveway grates· Shopping centres· Pool surrounds
· Balconies · Tree grates
